Top-Kart

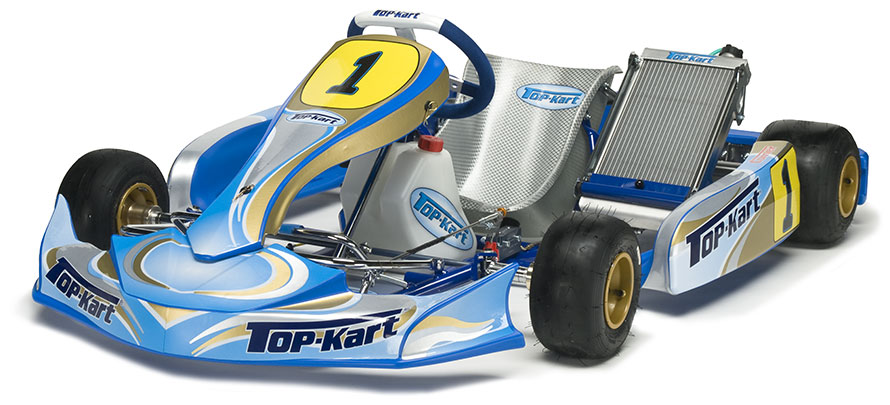

Twister 100 Cik-Fia


Twister 100 Cik-Fia
  • Chassis CR MO Ø 30/30.
  • 1050 mm. wheelbase.
  • Heigh adjustable tube axle Ø 50 mm. supported by 3 bearings.
  • Height adjustable forged stub axles Ø 25.
  • Adjustable Ackermann steering system, blue Alcantara covered steering wheel.
  • Hydraulic braking-system, self-ventilating brake disc.
  • One piece magnesium wheels, front 5"x125/130 rears 5"x180/210.

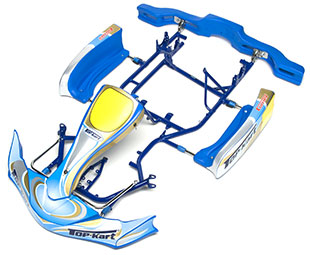

  • Supplied with fitted side pods, front nasa panel and spoiler + stickers kit


IAME Motoren


Reedster
CLASS
  • KF1
  • KF2
  • KF3
DESCRIPTION
  • Single cylinder - 2 stroke
  • Inlet system: reed valve
  • Lubrication: fuel-oil mix / 4% oil
  • Ignition system: electronic digital / with rev. limiter
  • Clutch: automatic, centrifugal, dry
  • Transmission: right side
  • Cooling system: by water flow
  • Starting: with electric starter 12V/0.30 Kw
  • Battery charge: by integral generator in the ignition
  • BORE - MAX BORE - STROKE: ø53.89 mm / ø54.04 mm / 54.40 mm
  • DISPLACEMENT: 124.08cc
  • CARB MODEL: CIK/FIA Homol.

PV100 Swift
CLASS
  • 100cc ICA JUNIOR - CIK/FIA
DESCRIPTION
  • Single cylinder - 2 stroke
  • Inlet system: piston valve
  • Lubrication: by oil mixture
  • Ignition system: analogic
  • Centrifugal clutch
  • Transmission: right side
  • Cooling system: by air flow
  • BORE - MAX BORE - STROKE; ø52.40 mm / ø52.61 mm / 46 mm
  • DISPLACEMENT: 99.2 cc
  • CARB MODEL: CIK/FIA Homol. (throttle) Carb. ø24 mm

Parilla X30 TaG
CLASS
  • 125cc ( single brand)
DESCRIPTION
  • Single cylinder - 2 stroke
  • Inlet system: reed valve
  • Lubrication: by oil mixture
  • Ignition system: digital with electric starter and battery charger incorporated
  • Centrifugal clutch
  • Transmission: right side
  • Cooling system: by water flow
  • BORE - MAX BORE - STROKE: ø54 mm / ø54.28 mm / 54 mm
  • DISPLACEMENT: 123.67 cc
  • MAX POWER: 30 Hp - 11000÷11250 rpm
  • MAX TORQUE: 19.5 Nm - 10250÷10500 rpm
  • MAX RPM LIMIT: 15500 rpm (with limiter)
  • CLUTCH TRIGGERING: 4800 rpm
  • CARB MODEL: Tryton hobby 27

Parilla Gazelle TaG
CLASS
  • 60cc (10-11 years old)
DESCRIPTION
  • FREE model
  • Single cylinder - 2 stroke
  • Inlet system: piston valve
  • Lubrication: by oil mixture
  • Ignition system: digital with electric starter and battery charger incorporated
  • Centrifugal clutch
  • Transmission: right side
  • Cooling system: by air flow
  • BORE - MAX BORE - STROKE: ø41.80 mm / ø42.00 mm / 43.30 mm
  • DISPLACEMENT: 59.42 cc
  • MAX POWER: 9.3 Hp - 10250 rpm
  • MAX TORQUE: 6.6 Nm - 9000 rpm
  • MAX RPM LIMIT: 13000 rpm
  • CLUTCH TRIGGERING: 4800 rpm
  • CARB MODEL: Tillotson HL 334B ø19.8 mm
